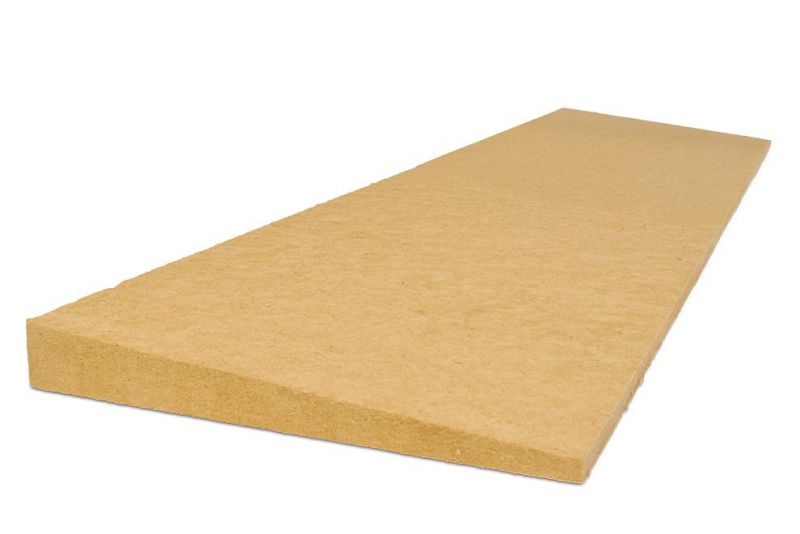

naturbo insulating wedge
The naturbo insulation wedge was designed as a supplement to the naturbo interior insulation board and is used for the thermal insulation of the flanks that extend from external walls to prevent cold bridges. Please note our information at the end of this page.
Order number
| Board type | Item number |
|---|---|
| naturbo Insulting wedge | 1001-18 |
Description
- Vapour diffusion-open insulating wedge for flank insulation
- 8 – 30 mm thick wood soft fibre board (DIN EN 13171)
Scope of application
For planking the flanks of the inner sides of the outer walls. Also in damp rooms (bath, shower, toilet) except in the immediate splash water area. Not suitable for cladding the inside of external walls (please use naturbo interior insulation board for this purpose)
Processing
The boards are glued full-faced to the wall using the butterfly method. Make sure that the ground connection is good. For higher load requirements, additional mechanical fastening with dowels is necessary.
Use in timber construction only after consultation.
More information on processing:
- Processing at a glance
- Binding processing instructions in detail
Technical data
| Dimensions | |
|---|---|
| length | 135 cm |
| width | 26 cm |
| height | tapered from 30 mm to 8 mm |
| inclination | 5 ° |
| weight | 1,1 kg/Stück |
| area | 0.35 m² |
| Structural-physical data | |
|---|---|
| fire behaviour according to DIN EN 13501-1 | E |
| Water vapour diffusion resistance | μges = 5 |
| density | 160 kg/m³ |
| thermal conductivity | λRated value = 0.045 W/(m•K) |
| equivalent air layer thickness in [m] sd-value (averaged) | 0.06 |
| compressive strength [kPa] | 180 |
| waste code (EAK) | 030 105/170201 – Disposal like wood and wood-based materials |
Data sheet – PDF download
Miscellaneous
| Storage | horizontal, flat, dry |
| Sales units | piece |
The naturbo flank insulation board is part of the naturbo interior insulation system in dry construction. To use it you need other products from the naturbo range.
Important note
Despite the naturbo system's generally high tolerance to fluctuations in heat and cold at different levels of humidity, we as manufacturers must point out the following points:
- Individual cases may vary
What generally appears to be harmless, can nevertheless lead to problems in specific individual cases. As manufacturer of the naturbo interior insulation system we do not know your building site. Therefore we cannot assume any liability that the naturbo interior insulation system is a suitable solution in your special individual case. - Specialist
For this reason, we strongly recommend that the interior insulation is carried out with professional, expert advice. It is the task of the expert to assess the building structure, including the condition of the façade, from the point of view of building physics, and on this basis to determine the structure of the interior insulation. - Careful processing
Furthermore, the careful processing of the naturbo interior insulation system is crucial to ensure that no problems arise later. In particular, the ground connection between panels and wall, the full-surface installation of the interior insulation and the avoidance of cold bridges through flank insulation must be taken into account. Exceptions must be assessed by a specialist. - Ventilation
In order to prevent damage later, it is also recommended that rooms with naturbo interior insulation are ventilated regularly and sensibly. Severe deficiencies in ventilation can at some point lead to problems or even damage, even with naturbo interior insulation system.
Ultimately, every tradesman or building owner must decide for themselves who plans the interior insulation and who carries it out. We would just like to emphasize that we as manufacturer cannot take any responsibility for professional planning and professional installation.
